Product Details
＋

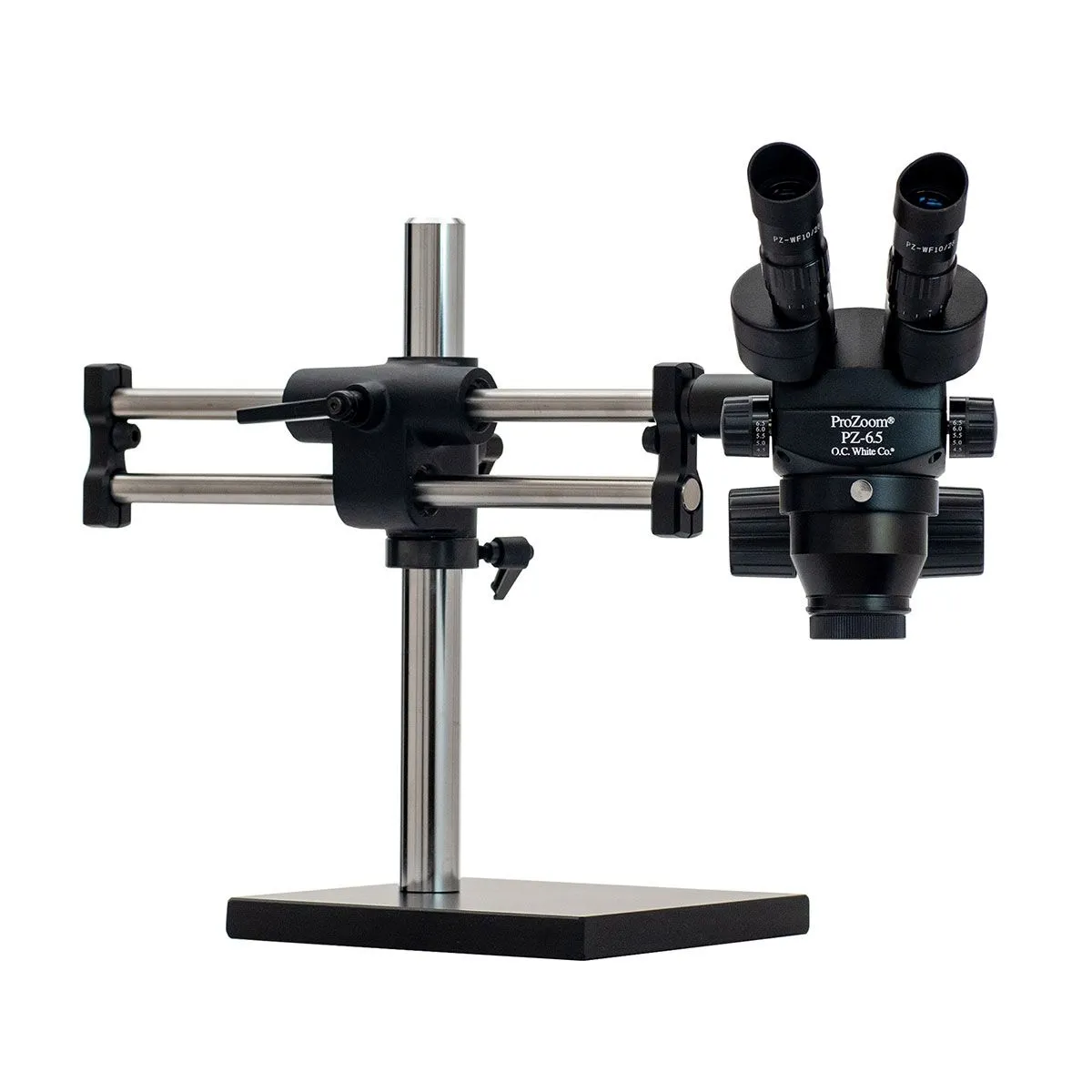

The ProZoom® 6.5 Binocular Microscope TKPZ-LV2 features Super-Wide (28mm) 10x eyepieces. An included 0.5 Aux. lens increases the working distance. A Heavy Duty Double Ball Bearing Base & light is included. Compatible with all Micro-Lite® Illuminators. ESD-Safe
- Super-Wide (28mm) 10x Eyepieces
- Standard Range 5.0-65x (up to 390x with optional parts)
- Ultima® EPS Articulating Arm Featuring Angular Adjustment Drop Arm and Modular Functionality to Add Additional Arms & Monitor Mounting, Easy 360° main body rotation
- 190mm working distance
- 0.5x Auxiliary Objective Lens included
- ±6 Diopter Adjustable eyepieces to correct individual eyesight variations
- 45° Eye tube inclination
- ESD-Safe Standard
- Micro-Lite® FL1000 with High-Output Fluorescent Bulb
ProZoom® PZ - 6.5 Technical Data
| Eyepiece | Main Body | 0.37x PZ-OB-037 | 0.5x PZ-OB-050 | 0.7x PZ-OB-070 | 1.0x PZ-OB-100 | 2.0x PZ-OB-200 | |
|---|---|---|---|---|---|---|---|
| 10x | MAG: | 10 - 65x | 3.7 - 24.1x | 5 - 32.5x | 7 - 64x | 10 - 65x | 30 - 130x |
| FOV: | 23 - 3.5mm | 62.2 - 9.6mm | 46 - 7mm | 32.9 - 5mm | 23 - 3.5mm | 11.5 - 1.8mm | |
| 15x | MAG: | 15 - 97.5x | 5.55 - 36.1x | 7.5 - 48.8x | 10.5 - 69x | 15 - 97.5x | 30 - 195x |
| FOV: | 17 - 2.6mm | 45.9 - 7mm | 34 - 5.2mm | 24.3 - 3.7mm | 17 - 2.6mm | 8.5 - 1.3mm | |
| 20x | MAG: | 20 - 130x | 7.4 - 48.1x | 10 - 65x | 14 - 92x | 20 - 130x | 40 - 260x |
| FOV: | 14 - 2.2mm | 37.8 - 5.8mm | 28 - 4.2mm | 20 - 3.1mm | 14 - 2.2mm | 7 - 1.1mm | |
| 30x | MAG: | 30 - 195x | 30 - 195x | 11.1 - 72.2x | 21 - 138x | 30 - 195x | 60 - 390x |
| FOV: | 9 - 1.4mm | 24.3 - 3.7mm | 18 - 2.7mm | 12.9 - 2mm | 9 - 1.4mm | 4.5 - 0.7mm | |
| Working Distance | 118mm | 275mm | 195mm | 145mm | 110mm | 35mm | |
Specifications
- Light Source: 150w Fiberoptic Annular Light (Micro-Lite® ML3000-A)
- Magnification: 5.0 - 65x (up to 390x with options)
- Mounting Style: Ball Bearing Base
- Voltage: 100-240V
- ESD-Safe: Yes
