Product Details
＋

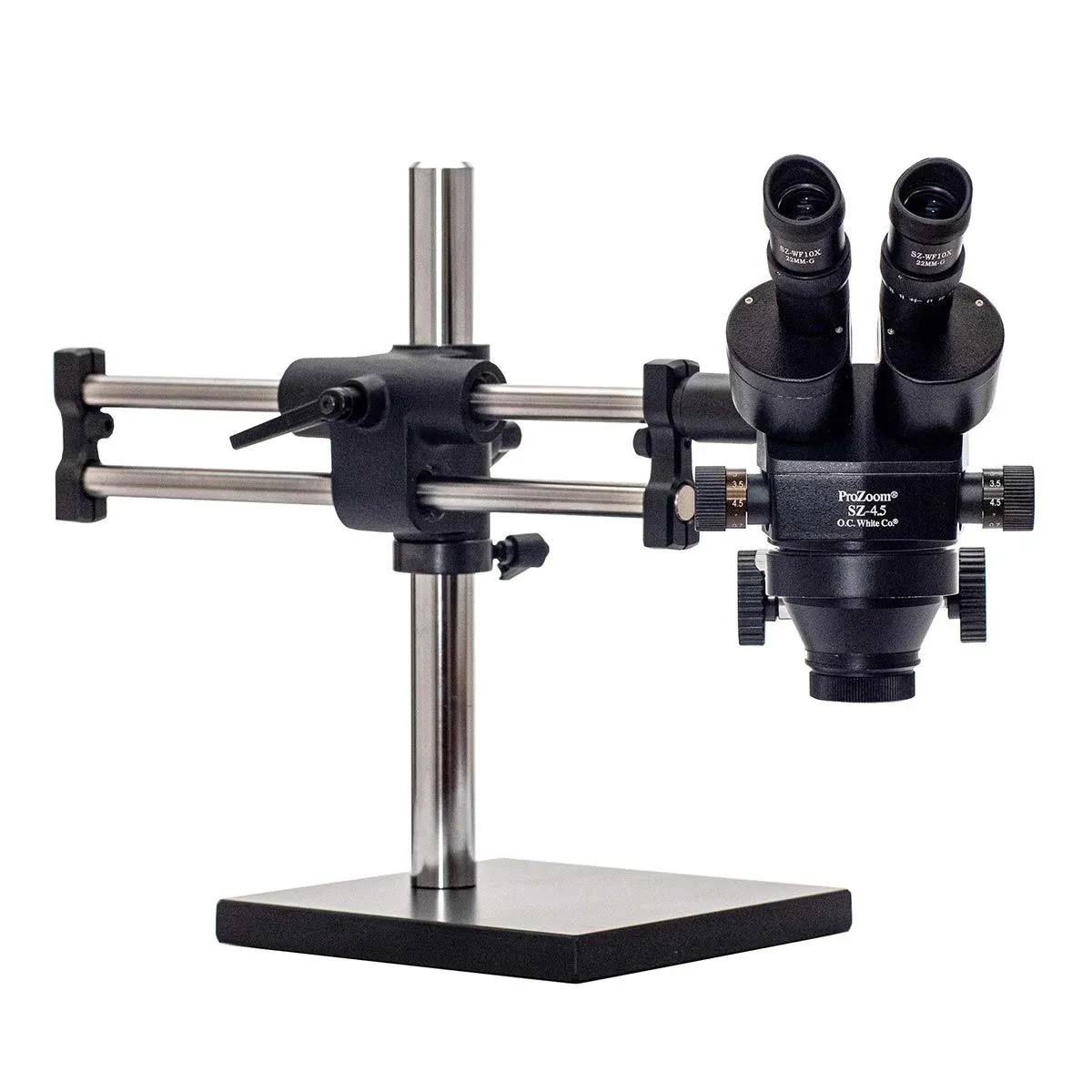

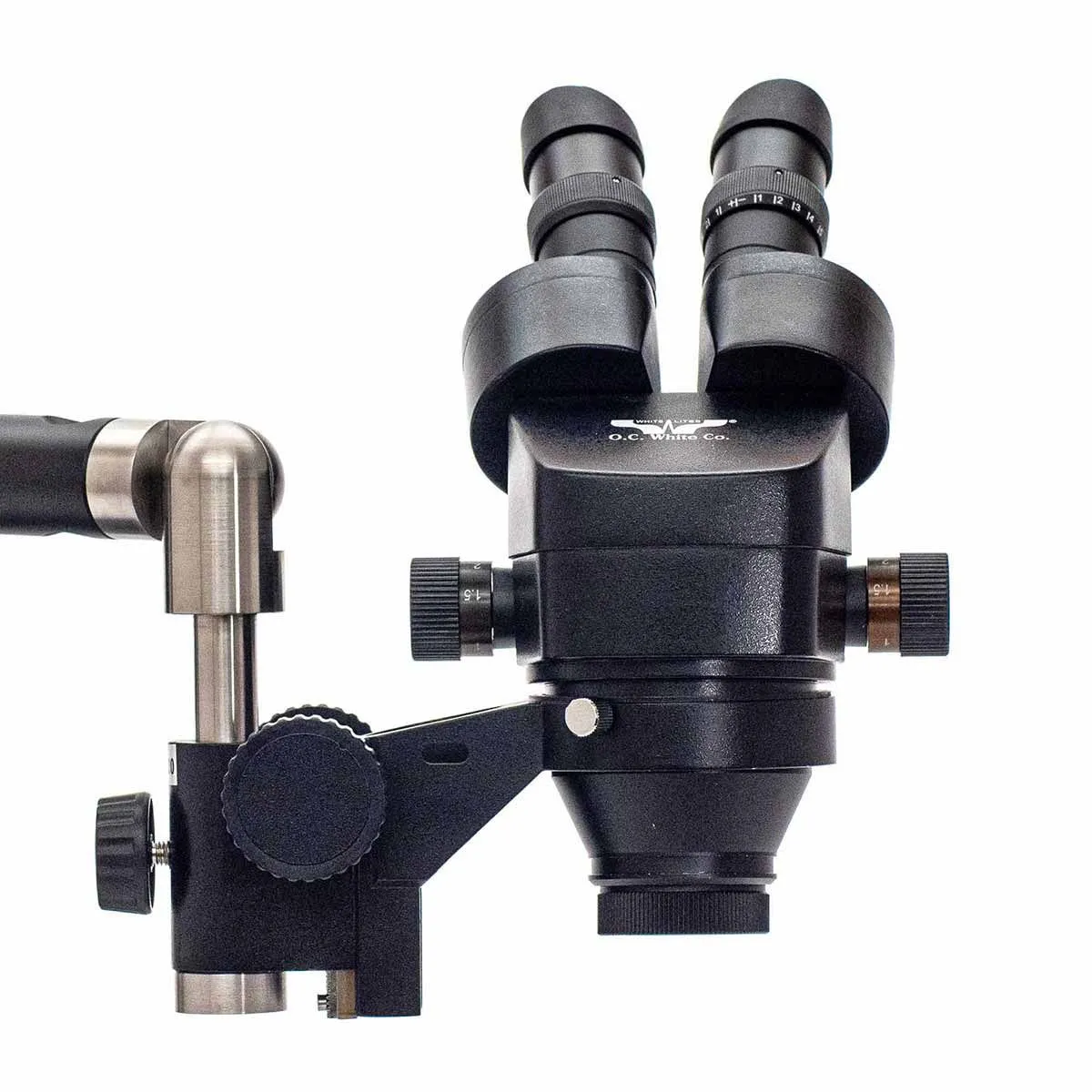

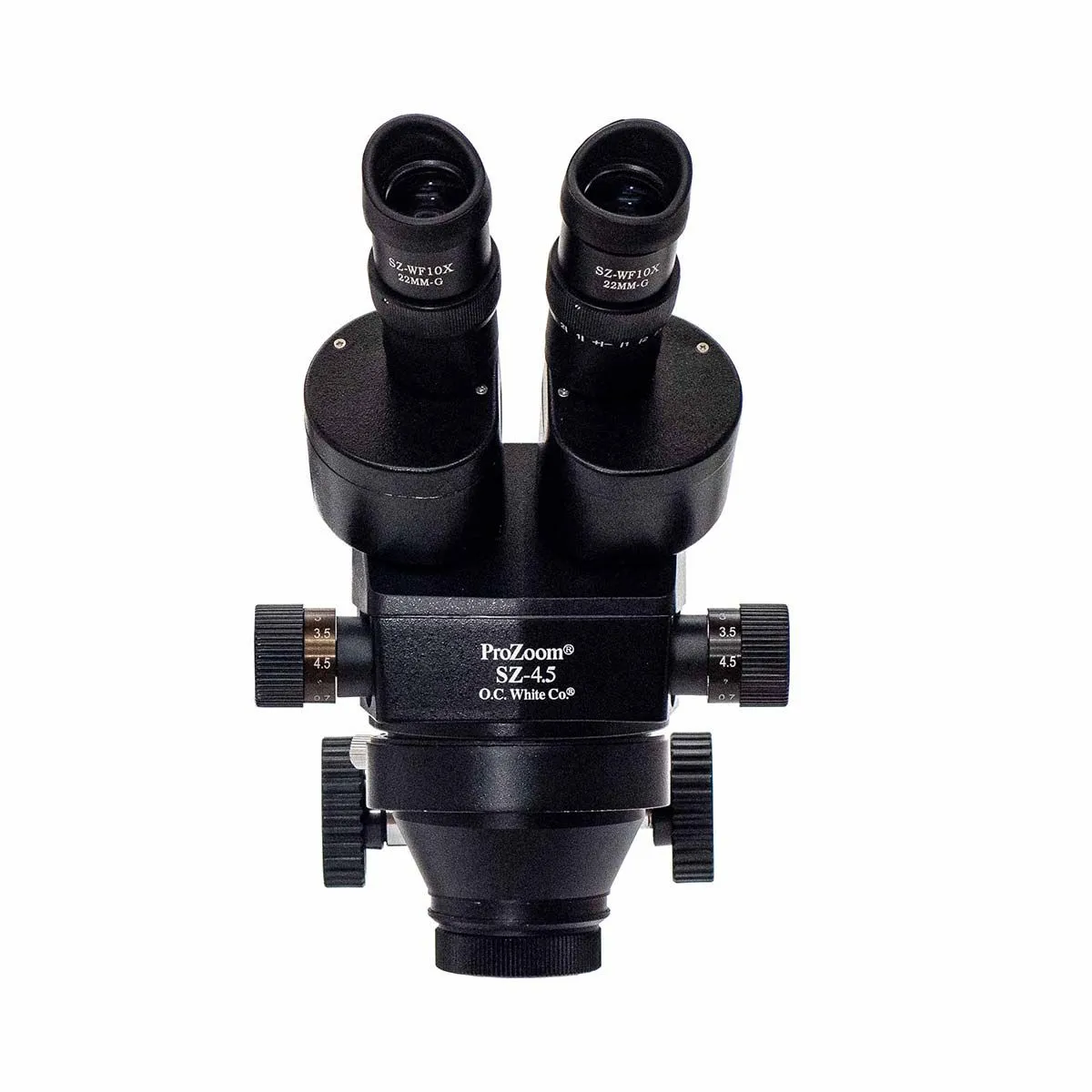

The ProZoom® 4.5 Stereo Zoom Binocular Microscope family combines durability, low cost, & performance, providing a choice on par with much more expensive microscopes. Standard Magnification Range of 7.0-45x (up to 225x with options). Compatible with all Micro-Lite® Illuminators. (Shown with optional Micro-Lite® LV2000-B, TKSZ-LV2. ESD-Safe
- Extra-Large (22mm) 10x Eyepieces
- Standard Range 7.0-45x (3.5-225x with optional parts)
- Ultima® EPS Articulating Arm Featuring Angular Adjustment Drop Arm & Modular Functionality to Add Additional Arms & Monitor Mounting, Easy 360° main body rotation
- 90-250mm working distance
- 0.5 Auxiliary Objective Lens included
- ±5 Diopter Adjustable eyepieces to correct individual eyesight variations
- 45° Eye tube inclination
- ESD-Safe Standard
- Micro-Lite® FL1000 with High-Output Fluorescent Bulb
| Eyepiece | 0.3x SZ-OB-030 | 0.5x SZ-OB-050 | 0.75x SZ-OB-075 | 1.0x SZ-OB-100 | 1.5x SZ-OB-150 | 2.0x SZ-OB-200 | |
|---|---|---|---|---|---|---|---|
| 10x | MAG: | 2.5-16.6x | 3.5-22x | 5.3-33.8x | 7.0-45x | 10.6-68x | 14-90x |
| FOV: | 88-13.2mm | 62.8-9.8mm | 41.9-6.5mm | 31.4-4.9mm | 20.9-3.3mm | 15.7-2.5mm | |
| 15x | MAG: | 3.75-25x | 5.3-33.8x | 7.9-50.6x | 10.5-67.5x | 15.8-101.2x | 21-135x |
| FOV: | 60-8.9mm | 42.8-6.7mm | 28.5-4.4mm | 21.4-3.4mm | 14.2-2.3mm | 10.7-1.7mm | |
| 20x | MAG: | 5.0-33.2x | 7.0-45x | 10.6-67.5x | 14-90x | 21.2-135x | 28-180x |
| FOV: | 48-71.5mm | 34.2-5.3mm | 22.9-3.6mm | 17.1-2.7mm | 11.4-1.8mm | 8.5-1.4mm | |
| 25x | MAG: | 6.25-41.5x | 8.8-56.3x | 13.1-84.4x | 17.5-112.5x | 26.3-168.8x | 35-225x |
| FOV: | 36-53.5mm | 25.7-4mm | 17.1-2.7mm | 12.8-2mm | 8.5-1.4mm | 6.4-1mm | |
| Working Distance | 193mm | 137mm | 103mm | 88mm | 38mm | 29mm | |
